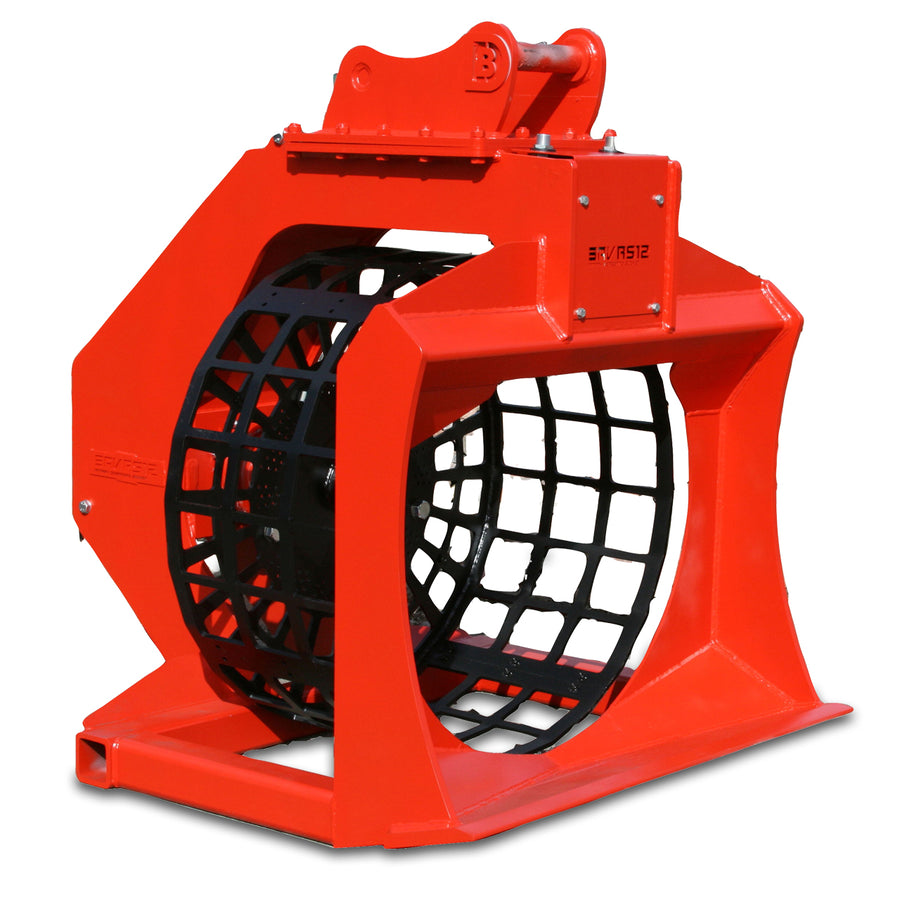

BAV-RS12 Excavator Screening Bucket 13.0-21.0t
INC. VAT £21,780.00 GBP
Fast, powerful rotary trommel screening of materials for 13 to 21 tonne hydraulic excavators. The BAV-RS12 comes complete with screens to enable three output grades; 25mm, 50mm and 75mm.
Specifications:
- for 13 to 21t excavators
- Drum dia. 1,180mm,
- Drum depth 600mm
- Grades: 25, 50, 75mm
- Weight 1,100kgs
- Hydraulic Pressure: 200 - 300 bar
Manufacture time 3 to 4 weeks from order
INC. VAT £21,780.00 GBP
BAV-RS12 Excavator Screening Bucket 13.0-21.0t
Title
Introducing the BAV-RS12
Rotary Screening Bucket
Compact on site soil, aggregate and rubble screening
Minimum Carrier Excavator weight
1
3
.
0
t
o
n
n
e
s
Maximum Carrier Excavator weight
2
1
.
0
t
o
n
n
e
s
- Drum Diameter
- Drum Length
- Weight (approx.)
- Hydraulic Pressure
- Hydraulic Flow
- 1,180mm
- 600mm
- 1,100kgs
- 190-210 Bar
- 75-115 l/min
BAV-RS12 Product Features
Details that deliver the difference

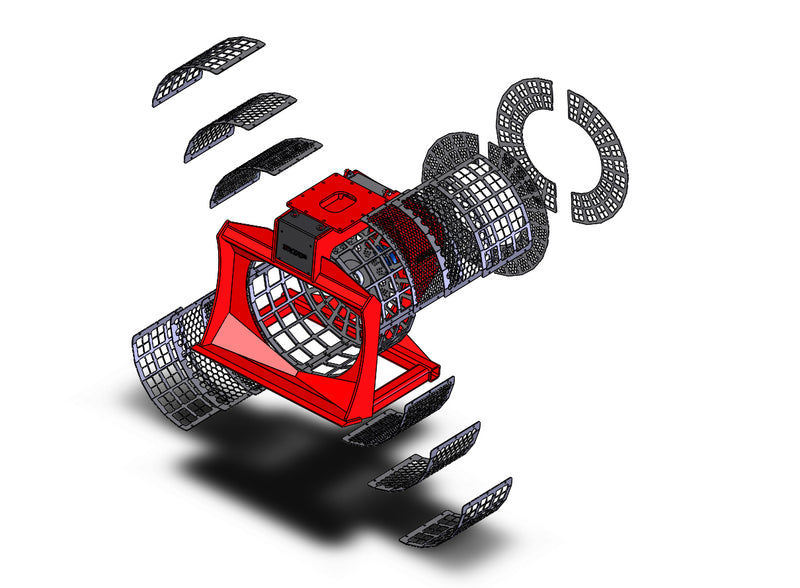

3 Screen Sizes - as standard
The BAV-RS12 comes complete with 3 screen sizes as standard, to allow different output grades:
- 75mm mesh drum
- 50mm bolt-on panel set
- 25mm bolt-on panel set

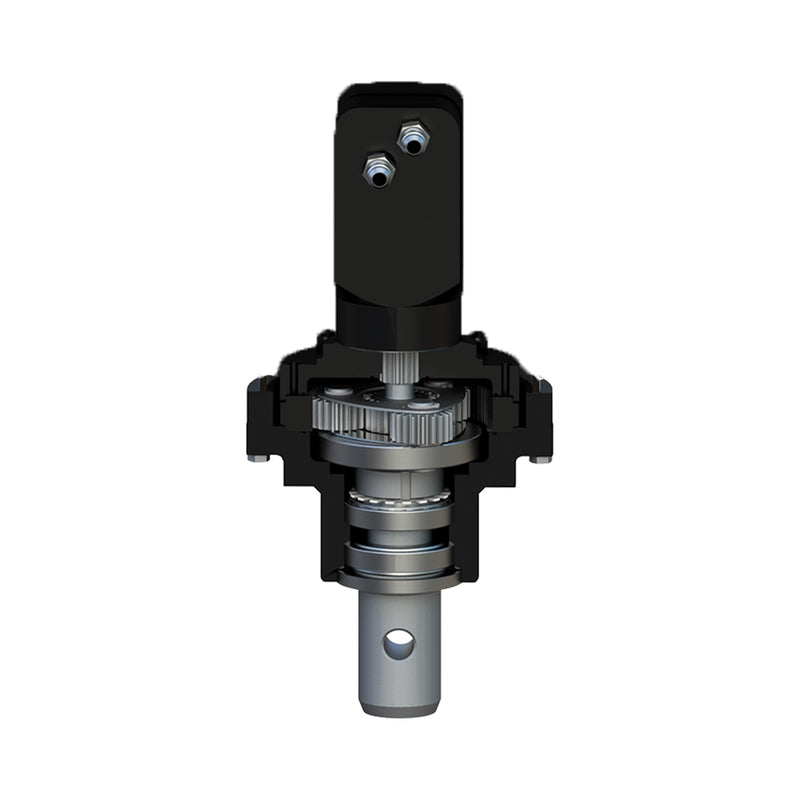

High Torque Planetary Motor
The RS1 features a high torque planetary gear motor.
The torque enables screening at low engine revs, for maximum efficiency.
Extremely robust carrier bearings, enable the motor will withstand high axial and radial drum loadings.

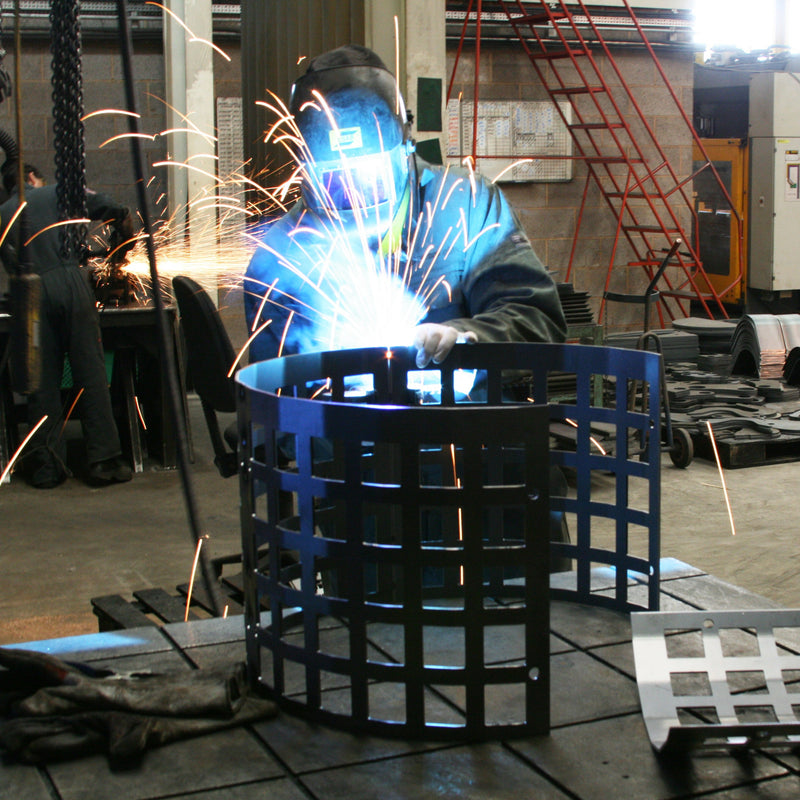

British Built
Quality materials and skilled, British fabrication and manufacture ensure reliable, durable service life.

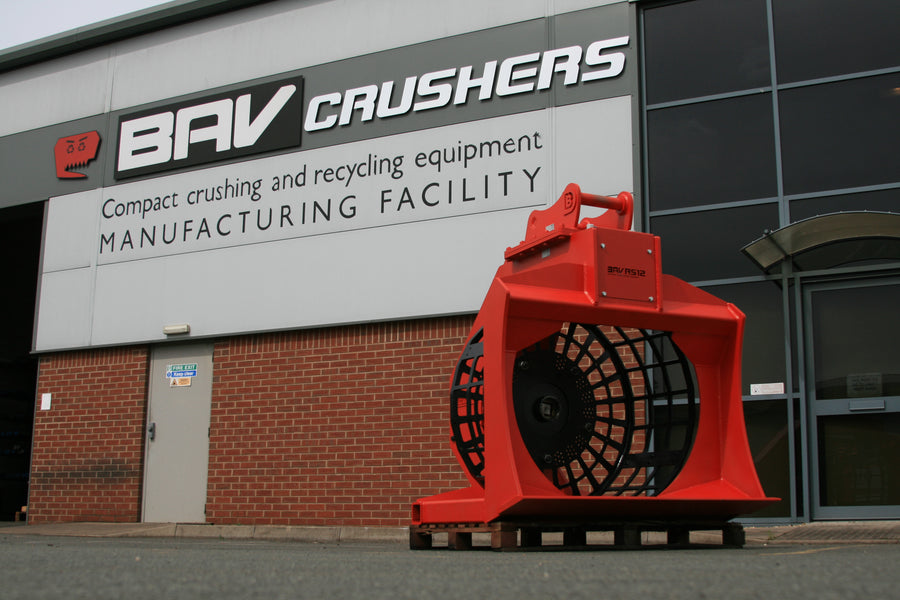

We are a British company, with a physical location within the UK that anyone can see on Google maps. You know who you are dealing with.
3 Screen Sizes - as standard
The BAV-RS12 comes complete with 3 screen sizes as standard, to allow different output grades:
- 75mm mesh drum
- 50mm bolt-on panel set
- 25mm bolt-on panel set
High Torque Planetary Motor
The RS1 features a high torque planetary gear motor.
The torque enables screening at low engine revs, for maximum efficiency.
Extremely robust carrier bearings, enable the motor will withstand high axial and radial drum loadings.
British Built
Quality materials and skilled, British fabrication and manufacture ensure reliable, durable service life.
We are a British company, with a physical location within the UK that anyone can see on Google maps. You know who you are dealing with.
Frequently Asked
Questions
How much will it screen?
For most of our BAV-RS screening bucket range,the very short answer is; approximately 4 to 5 times the weight of the carrier excavator, per hour. This is at the largest, coarsest output grade. It can be faster than this in optimum conditions.
For more detail, please read further FAQ notes on output size and feed material.
What is the output grade size?
Every BAV-RS screening bucket comes, as standard, with 3 output grade sizes:
- 0 to 50mm approx.
- 0 to 25mm approx.
- 0 to 12.5mm approx.
Feed material quality & cleanliness
For these types of screening bucket, the ideal is good, clean, dry material.
Material with high moisture content may clog, or may not be able to be processed at finer output grades.
Excavator auxiliary hydraulic requirements
This part is very simple. Always run on 2-way circuit not hammer circuit.
Flow: The attachments are designed to be able to take the maximum flow of their respective carrier excavator class. the more flow, the faster the jaw moves.
Pressure: The attachments are designed to be able to take the maximum pressure of their respective carrier excavator class. ensure your machine's circuits have not been re-set or de-rated. This will lead to poor performance.
On older machines, check the condition of hydraulic oil and also the pressure and flow performance of the pumps. Other digging functions can still work, even when pumps are worn out.
Why use a BAV-RS excavator-mounted screening bucket? The trommel drum design works for both fine materials like soil or sand, but also hard materials like aggregates. As well as producing and cleaning topsoil, the attachment can be used to sort fines from rubble before crushing, as well as grading crushed aggregate.
